This High-Purity PAC is a professional-grade polyanionic cellulose designed for oil drilling fluid systems. It is widely used as a filtration control and viscosity modifier in water-based drilling muds. The product provides stable rheological performance, effectively reduces fluid loss, and enhances wellbore stability under various drilling conditions. With high purity and consistent quality, it performs reliably in freshwater, saltwater, and complex drilling environments. It is suitable for oilfield service companies and drilling contractors seeking dependable performance and formulation flexibility.
| Quantity: | |
|---|---|

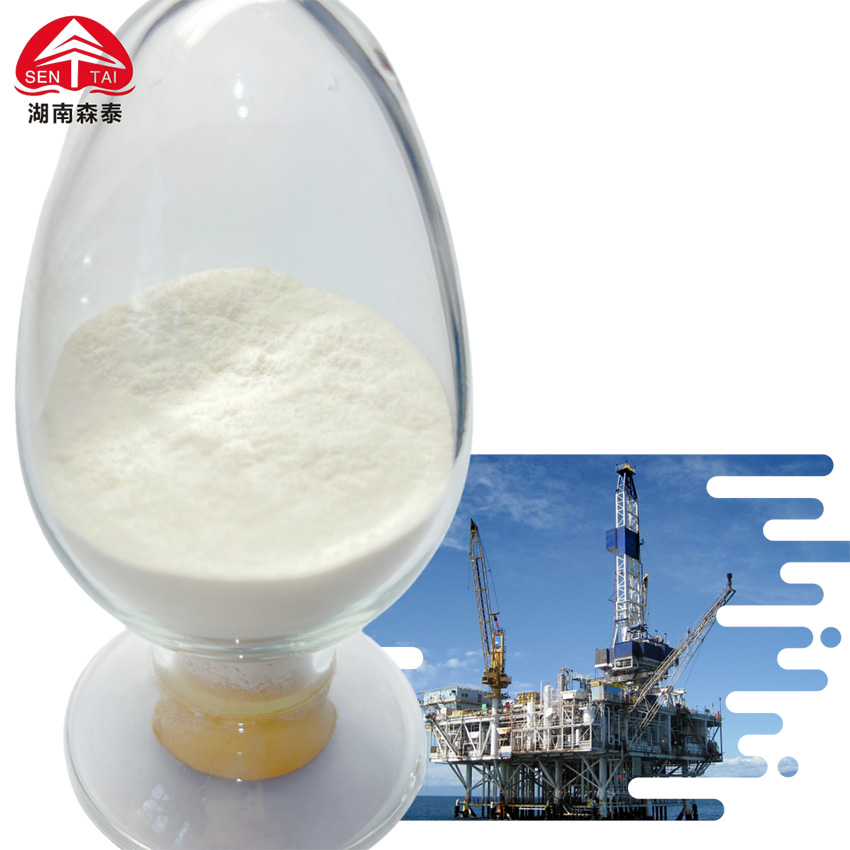

This ultra-pure cellulose derivative presents itself as a fine, free-flowing white to off-white powder, engineered to deliver superior filtration control, rheology modification, and shale inhibition. These properties are critical for maintaining wellbore stability in demanding high-pressure, high-temperature (HPHT) environments where fluid reliability dictates operational success. Upon introduction to the mud system, the powder disperses rapidly without clumping, building immediate viscosity and forming a protective barrier along the formation wall.
Unlike standard industrial grades, its guaranteed 99.5% purity effectively eliminates formation damage caused by unreacted impurities or insoluble residues, making it the definitive choice for horizontal wells and sensitive unconventional reservoirs. Its unique, highly substituted molecular structure actively resists thermal and mechanical degradation under extreme downhole conditions. This structural integrity ensures consistent, predictable fluid properties from the surface all the way to target depths exceeding 5000 meters, providing drilling engineers with precise control over hydrostatic pressure and hole cleaning dynamics throughout the entire operation.
The following specifications represent the rigorous quality benchmarks our High-Purity PAC meets before deployment. Every batch undergoes exhaustive laboratory testing to ensure the degree of substitution and molecular weight distribution align perfectly with advanced drilling requirements. By maintaining strict control over moisture content and ignition residue, we guarantee a product that hydrates efficiently and performs predictably, even when subjected to heavy brine concentrations or elevated thermal gradients. These exact parameters provide mud engineers with the precise data needed to formulate highly stable, optimized fluid systems for complex geological formations.
Parameter | Specification |
Appearance | White to off-white free-flowing powder |
Viscosity (2% solution, 25°C) | 300–600 mPa·s |
Purity | ≥99.5% |
Degree of Substitution (DS) | 1.2–1.8 |
Moisture Content | ≤8% |
Salt Tolerance | Stable in 20% NaCl solution |
Temperature Resistance | Up to 180°C |
Residue on Ignition | ≤0.5% |
Achieving a ≥99.5% purity alongside a remarkably low ≤0.5% ash content, this formulation actively prevents pore plugging in sensitive reservoir formations, thereby maximizing the long-term hydrocarbon production potential of the well. Manufactured under uncompromising quality control protocols, this PAC offers excellent batch-to-batch consistency that procurement managers and field engineers can rely on. This absolute reliability ensures predictable rheological performance in complex drilling fluid formulations, drastically reducing operational risks and minimizing the need for sudden chemical adjustments on the rig.
Engineered for extremes, the polymer maintains strict viscosity control up to 180°C, significantly outperforming conventional cellulose additives in deep-well applications. The product maintains stable viscosity and fluid-loss control performance under both high-temperature and high-salinity conditions. Furthermore, it demonstrates exceptional adaptability across an incredibly wide pH range. Whether deployed in standard freshwater muds or saturated saltwater systems, the molecular structure remains intact, ensuring that the fluid's rheological profile does not collapse when encountering unexpected geological brines or acidic gas kicks.
By reducing fluid loss to formations by 40–60% compared to standard PAC grades, this additive is instrumental in minimizing wellbore damage. It significantly reduces API fluid loss in water-based drilling fluids, helping maintain stable mud properties during active drilling operations. A key mechanism behind this is its ability to deposit a microscopic, highly resilient, and low-permeability filter cake along the wellbore wall. This tough physical barrier provides reliable hydrostatic pressure support, effectively preventing formation collapse and costly mud seepage into porous rock layers.
When drilling through reactive shale sequences, the polymer rapidly adsorbs onto exposed clay surfaces. This targeted chemical action prevents the hydration and subsequent swelling of the shale, drastically reducing the risk of stuck pipe incidents, tight hole conditions, and bit balling in reactive formations.
Designed with rig-site practicalities in mind, the powder exhibits a low initial gel strength, allowing it to be poured and dispersed rapidly through standard mud hoppers without forming undesirable "fish eyes." Additionally, its advanced structural composition naturally resists microbial degradation. This eliminates the necessity for supplementary biocides or preservatives in the mud system, simplifying daily field operations, reducing chemical inventory requirements, and enhancing overall mixing efficiency.
Beyond fluid loss control, this PAC significantly enhances the inherent lubricity of the drilling fluid. By reducing the frictional resistance between the drill string and the wellbore casing, it helps lower torque and drag during complex directional drilling. Simultaneously, it provides superior suspension characteristics, ensuring that rock cuttings are effectively lifted from the bit face and transported smoothly to the surface, promoting cleaner boreholes and faster rates of penetration.
As regulatory scrutiny intensifies globally, transitioning to environmentally responsible operations is paramount. This PAC serves as a highly effective, eco-friendly water-based mud (WBM) additive. It is strictly non-toxic and readily biodegradable, making it the ideal compliant alternative to traditional, environmentally hazardous oil-based muds (OBM). Using this product helps operators meet stringent regional environmental regulations without sacrificing downhole performance.
In extended-reach and horizontal wells, maintaining a clean hole is exceptionally challenging due to gravity acting on the cuttings. This PAC stabilizes long lateral sections by maintaining consistent fluid viscosity, ensuring that cuttings remain suspended rather than forming beds on the low side of the hole. Furthermore, its lubricating properties actively reduce friction pressure, allowing the drill string to slide more efficiently toward the target zone.
Deep oil and gas exploration frequently encounters hostile thermal environments that destroy standard polymers. This specialized formulation performs reliably in temperatures exceeding 150°C, maintaining its molecular chain integrity to deliver uninterrupted filtration control and rheological stability. This thermal endurance is critical for preventing catastrophic fluid loss and wellbore collapse during deep-well logging and casing operations.
Drilling through massive salt domes or evaporite layers typically causes severe flocculation and viscosity spikes in standard freshwater muds. This product actively resists flocculation in brine-based muds, maintaining a smooth, pumpable fluid profile. Its high tolerance to monovalent and divalent ions ensures uninterrupted performance, protecting the wellbore from washout and maintaining gauge hole integrity in challenging salt formations.
During the final stages of well preparation, maintaining a debris-free environment is essential for future production. This PAC acts as a highly efficient viscosity builder in low-solids completion fluids. It facilitates effective well cleanup by sweeping residual drilling debris from the casing, while its ultra-high purity ensures that no insoluble residues are left behind to impair the permeability of the production screens or the reservoir matrix itself.
It exhibits excellent compatibility with a wide spectrum of standard mud chemicals, including lignosulfonates, biocides, and heavy weighting agents like barite. More importantly, it demonstrates a remarkable synergy with bentonite and other clay materials. When combined, it significantly enhances the overall adsorption and filtration properties of the mud system, forming synergistic networks that actually allow operators to substantially reduce the total volume of commercial clay required in the active system.
Due to its high degree of substitution and purity, a little goes a long way. Typical addition rates range from 0.3–1.0 kg/m³ of drilling fluid for standard operations. For more demanding HPHT conditions, or when drilling through highly depleted zones requiring aggressive fluid loss control, slightly higher concentrations of 0.8–1.0 kg/m³ are recommended to ensure a robust, impenetrable filter cake.
Yes. The PAC maintains exceptional structural and performance stability under elevated temperatures commonly encountered in deep oil and gas drilling operations. Its specialized manufacturing process strengthens the polymer backbone, preventing the thermal thinning and rapid degradation that typically plague lower-grade cellulosic additives when bottom-hole temperatures spike.
Yes. We understand that rigorous mud testing is a prerequisite for field deployment. Representative samples are readily available for your mud engineers to conduct comprehensive laboratory evaluations, pilot testing, and field trials prior to committing to large-scale procurement contracts.
We recognize that logistical realities and specific geological demands vary drastically across different global drilling operations. To support diverse procurement requirements, we offer comprehensive customization services, allowing modifications to specific particle sizes or viscosity ranges to meet your proprietary mud formulations. Furthermore, the product is supplied in industrial-grade, multi-wall paper bags with robust moisture-proof inner liners, ensuring the powder remains dry and free-flowing during extended maritime transit or prolonged storage in humid rig-site environments. Specialized palletizing and shrink-wrapping options are also available to accommodate specific material handling equipment and strict offshore logistics standards.
